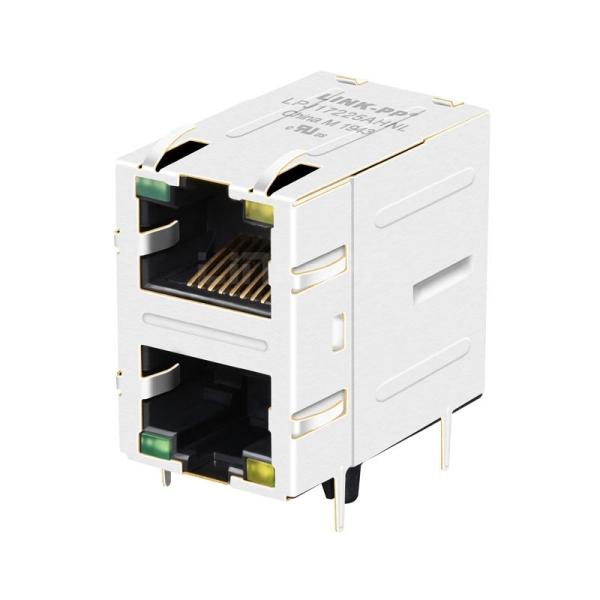

    YDS 71F-1308GYD2NL Compatible LINK-PP LPJ17225AHNL 10/100 Base-T 8p8c Green/Yellow LED 2x1 Port Magnetic Jack

    Ask Lasest Price
    Brand Name : LINK-PP
    Model Number : LPJ17225AHNL
    Certification : UL,ROHS,Reach,ISO
    • Product Details
    • Company Profile

    YDS 71F-1308GYD2NL Compatible LINK-PP LPJ17225AHNL 10/100 Base-T 8p8c Green/Yellow LED 2x1 Port Magnetic Jack

    YDS 71F-1308GYD2NL Compatible LINK-PP LPJ17225AHNL 10/100 Base-T 8p8c Magnetic jack for New Energy and Solar Inverter (2x1Port, Green/Yellow LED)


    The LPJ17225AHNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Smart Meters, Ethernet Control , New Energy and Solar Inverter.


    LINK-PP Part Number:
    LPJ17225AHNLYDS Part Number71F-1308GYD2NL
    Part Status
    ActiveConnector Type
    Jack
    Number of Positions/Contacts
    8p8c (RJ45, Ethernet)Application-Lan
    Ethernet(NoN PoE)
    Number of Ports
    2x1 PortSpeed
    10/100 Base-T
    Latch
    BothCores per Port
    4
    Orientation
    90° Angle (Right)PCB Mount Angle

    SIDE ENTRY

    Shield EMI Tabs
    WithLED Option

    Green/Yellow Led

    PCB
    FR4PCB Retaining Post

    T POST

    Package Height (Inches/mm)
    0.996/25.30Package Length (Inches/mm)

    1.122/28.49

    Package Width (Inches/mm)
    0.677/17.20
    Temperature
    0℃ TO +70℃
    Bst Circuit
    YesAutomDX

    YES

    Diodes
    NoContact Mating Area Plating

    GOLD 6u"/15u"/30u"

    Turns Ratio RX/TX
    1CT:1CTConfiguration RX/TX

    T,C
