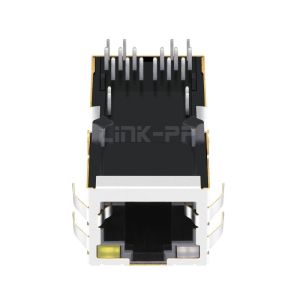

Allied ATRT-4-A-XX-003 Compatible LINK-PP LPJK2068AONL 100/1000 Base-T Tab Up Orange&Green/Yellow Led 1x1 Port POE+ Lan Ethernet RJ 45 Jack

Allied ATRT-4-A-XX-003 Compatible LINK-PP LPJK2068AONL 100/1000 Base-T POE+ Lan Ethernet RJ 45 Jack for Solar Inverter and Switches (POE+,1x1 Port, Tab Up, Orange&Green/Yellow Led)

The LPJK2068AONL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3 at, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Smart Home, , Solar Inverter and Game Controller.

LINK-PP Part Number:	LPJK2068AONL	Allied Part Number	ATRT-4-A-XX-003
Part Status	Active	Connector Type	Jack
Number of Positions/Contacts	12p8c (RJ45, Ethernet)	Application-Lan	Ethernet( PoE+ )
Number of Ports	1x1 Port	Speed	10/100/1000 Base-T
Latch	UP	Cores per Port	12
Orientation	90° Angle (Right)	PCB Mount Angle	SIDE ENTRY
Shield EMI Tabs	With	LED Option	Orange&Green/Yellow Leds
PCB	FR4	PCB Retaining Post	T POST
Package Height (Inches/mm)	0.531/13.50	Package Length (Inches/mm)	1.280/32.50
Package Width (Inches)	0.654/16.60	Temperature	0℃ TO 70℃
Bst Circuit	Yes	AutomDX	YES
Diodes	No	Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT	Configuration RX/TX	T,C
