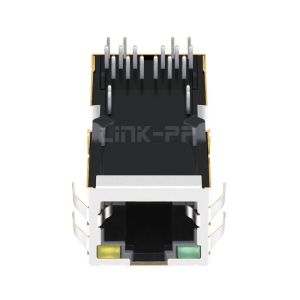

Molex 85789-1006 Compatible LINK-PP LPJK2070AHNL 100/1000 Base-T Tab Up Green/Yellow Led 1x1 Port POE+ RJ45 Modular Socket

Product Categories
Shenzhen LINK-PP INT'L Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Molex 85789-1006 Compatible LINK-PP LPJK2070AHNL 100/1000 Base-T Tab Up Green/Yellow Led 1x1 Port POE+ RJ45 Modular Socket from wholesalers

    Buy cheap Molex 85789-1006 Compatible LINK-PP LPJK2070AHNL 100/1000 Base-T Tab Up Green/Yellow Led 1x1 Port POE+ RJ45 Modular Socket from wholesalers
    • Buy cheap Molex 85789-1006 Compatible LINK-PP LPJK2070AHNL 100/1000 Base-T Tab Up Green/Yellow Led 1x1 Port POE+ RJ45 Modular Socket from wholesalers
    • Buy cheap Molex 85789-1006 Compatible LINK-PP LPJK2070AHNL 100/1000 Base-T Tab Up Green/Yellow Led 1x1 Port POE+ RJ45 Modular Socket from wholesalers
    • Buy cheap Molex 85789-1006 Compatible LINK-PP LPJK2070AHNL 100/1000 Base-T Tab Up Green/Yellow Led 1x1 Port POE+ RJ45 Modular Socket from wholesalers
    • Buy cheap Molex 85789-1006 Compatible LINK-PP LPJK2070AHNL 100/1000 Base-T Tab Up Green/Yellow Led 1x1 Port POE+ RJ45 Modular Socket from wholesalers
    • Buy cheap Molex 85789-1006 Compatible LINK-PP LPJK2070AHNL 100/1000 Base-T Tab Up Green/Yellow Led 1x1 Port POE+ RJ45 Modular Socket from wholesalers

    Molex 85789-1006 Compatible LINK-PP LPJK2070AHNL 100/1000 Base-T Tab Up Green/Yellow Led 1x1 Port POE+ RJ45 Modular Socket

    Ask Lasest Price
    Brand Name : LINK-PP
    Model Number : LPJK2070AHNL
    Certification : UL,ROHS,Reach,ISO
    • Product Details
    • Company Profile

    Molex 85789-1006 Compatible LINK-PP LPJK2070AHNL 100/1000 Base-T Tab Up Green/Yellow Led 1x1 Port POE+ RJ45 Modular Socket

    Molex 85789-1006 Compatible LINK-PP LPJK2070AHNL 100/1000 Base-T POE+ RJ45 Modular Socket for Media Player and Game Controller (POE+, 1x1 Port, Tab Up, Green/Yellow Led)


    The LPJK2070AHNL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3 at, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as New Energy, , Ethernet Control and Game Controller.


    LINK-PP Part Number:
    		LPJK2070AHNLMolex Part Number85789-1006
    Part Status
    		ActiveConnector Type
    		Jack
    Number of Positions/Contacts
    		12p8c (RJ45, Ethernet)Application-Lan
    		Ethernet( PoE+ )
    Number of Ports
    		1x1 PortSpeed
    		10/100/1000 Base-T
    Latch
    		UPCores per Port
    		8
    Orientation
    		90° Angle (Right)PCB Mount Angle

    SIDE ENTRY

    Shield EMI Tabs
    		WithLED Option

    Green/Yellow Leds

    PCB
    		FR4PCB Retaining Post

    T POST

    Package Height (Inches/mm)
    		0.531/13.50Package Length (Inches/mm)

    1.28/32.50

    Package Width (Inches)
    		0.654/16.60Temperature

    0℃ TO 70℃

    Bst Circuit
    		YesAutomDX

    YES

    Diodes
    		NoContact Mating Area Plating

    GOLD 6u"/15u"/30u"

    Turns Ratio RX/TX
    		1CT:1CTConfiguration RX/TX

    T,C
































    Product Tags:

    LPJK2070AHNL


    Quality Molex 85789-1006 Compatible LINK-PP LPJK2070AHNL 100/1000 Base-T Tab Up Green/Yellow Led 1x1 Port POE+ RJ45 Modular Socket for sale

    Molex 85789-1006 Compatible LINK-PP LPJK2070AHNL 100/1000 Base-T Tab Up Green/Yellow Led 1x1 Port POE+ RJ45 Modular Socket
