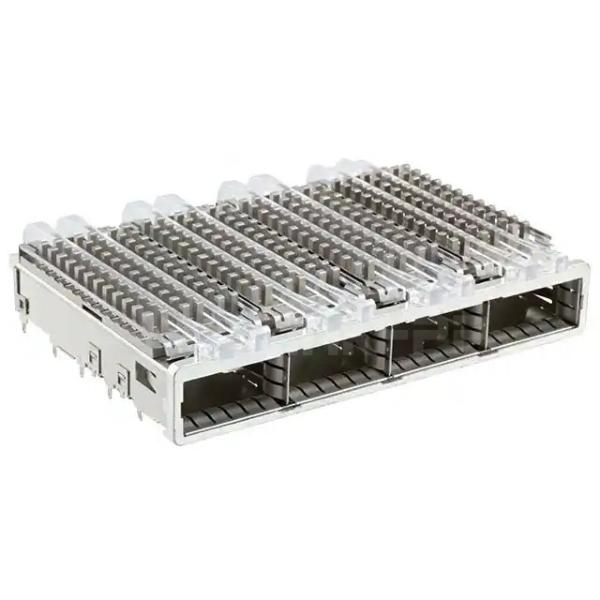

TE 2007626-1 QSFP+ Cage Assembly 1 x 4 Port With Heat Sink Included Lightpipe 14 Gb/s

Product Categories
Shenzhen LINK-PP INT'L Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap TE 2007626-1 QSFP+ Cage Assembly 1 x 4 Port With Heat Sink Included Lightpipe 14 Gb/s from wholesalers

    Buy cheap TE 2007626-1 QSFP+ Cage Assembly 1 x 4 Port With Heat Sink Included Lightpipe 14 Gb/s from wholesalers
    • Buy cheap TE 2007626-1 QSFP+ Cage Assembly 1 x 4 Port With Heat Sink Included Lightpipe 14 Gb/s from wholesalers
    • Buy cheap TE 2007626-1 QSFP+ Cage Assembly 1 x 4 Port With Heat Sink Included Lightpipe 14 Gb/s from wholesalers

    TE 2007626-1 QSFP+ Cage Assembly 1 x 4 Port With Heat Sink Included Lightpipe 14 Gb/s

    Ask Lasest Price
    Brand Name : LINK-PP
    Model Number : 2007626-1
    Certification : UL,ROHS,Reach,ISO
    • Product Details
    • Company Profile

    TE 2007626-1 QSFP+ Cage Assembly 1 x 4 Port With Heat Sink Included Lightpipe 14 Gb/s

    QSFP+ , Cage Assembly, 1 x 4, Customer Applied Gasket, Included Lightpipe, Standard, Data Rate (Max) 14 Gb/s, 4 Port

    Part Number:
    2007626-1Part Status
    Active
    Connector Style
    Cage, Ganged (1 x 4) with Heat SinkConnector Type
    QSFP+
    Heat Sink Height
    6.5mm[.256in]
    Mounting Type
    Through Hole, Right Angle
    Termination
    Press-FitFeatures
    EMI Shielded

    Port Matrix Configuration
    1x4 PortsNumber of Ports
    4
    Number of Rear EONs per Port Column
    1Data Rate (Max)(Gb/s)
    14
    Operating Temperature Range
    -55 – 105°C
    Pluggable I/O Applications
    SFP+ Stacked Belly-to-Belly
    Circuit Application
    SignalEMI Containment Feature Type
    Customer Applied Gasket

    Included Lightpipe
    YesCage MaterialNickel Silver

    PCB Thickness (Recommended)
    1.45mm[.057in]Tail Length
    2.2mm[.086in]







































    Product Tags:

    2007626-1
